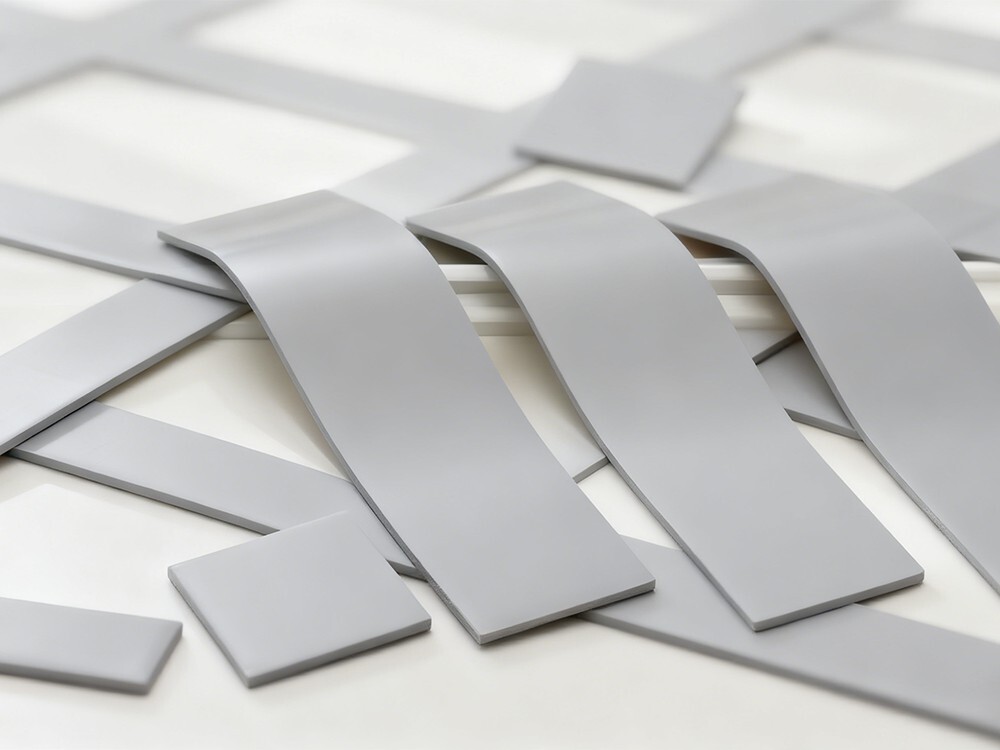

Silicon thermal pad

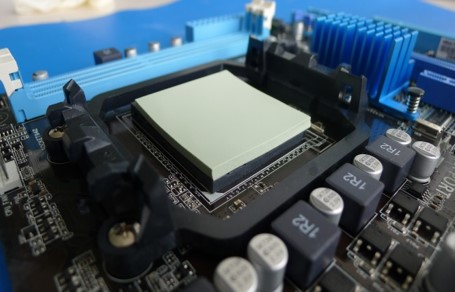

MINORU TGxx series thermally conductive PAD can used between electronic devices and heat sink interfaces. TGxx series products have good compression and thermal conductivity which enable them to fill the gap between the electronic components and the heat sink at very low pressure. It has slight tack that enable easy pre-assembly.

Email：kumazawa@minoru-japan.co.jp

Email：kaneda@Minoru-japan.co.jp

Inquiry Now →

Product Details

Product Description

Characteristics :

High thermal conductivity, low thermal resistance
High AC withstand voltage value
High conformability
Good resilience, high long-term reliability

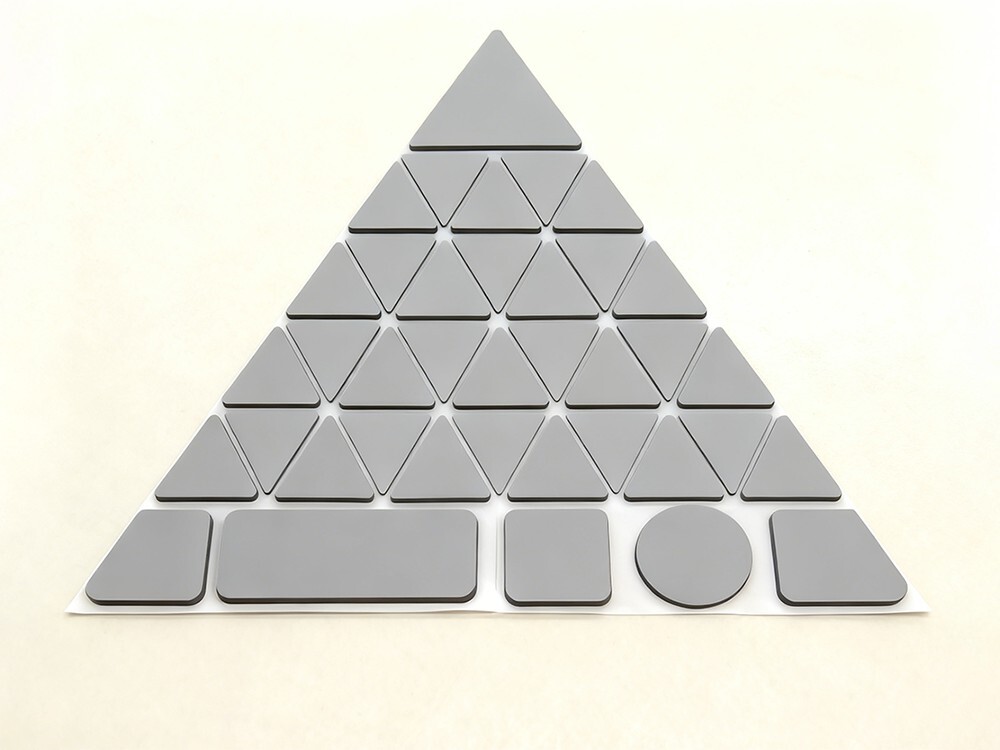

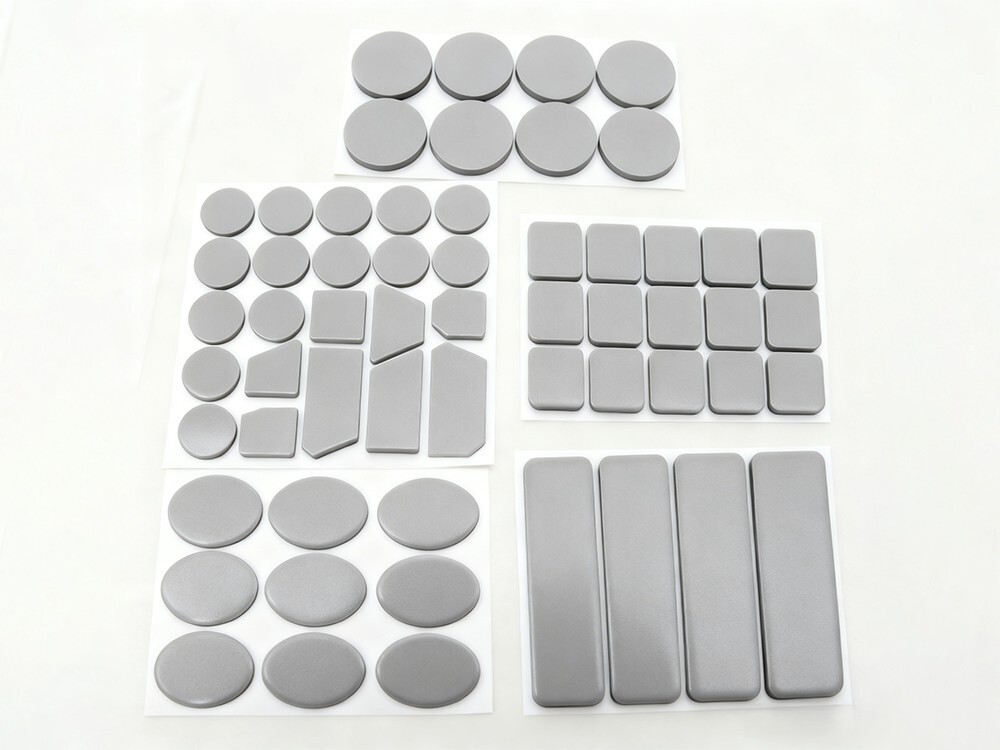

Multiple thickness options, wide range of applications

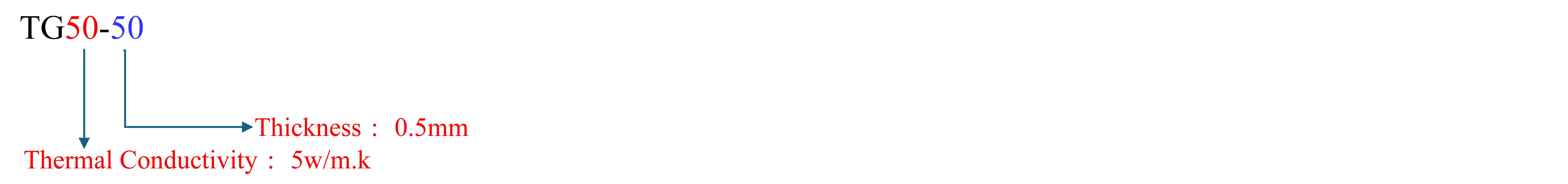

Product Name Rule

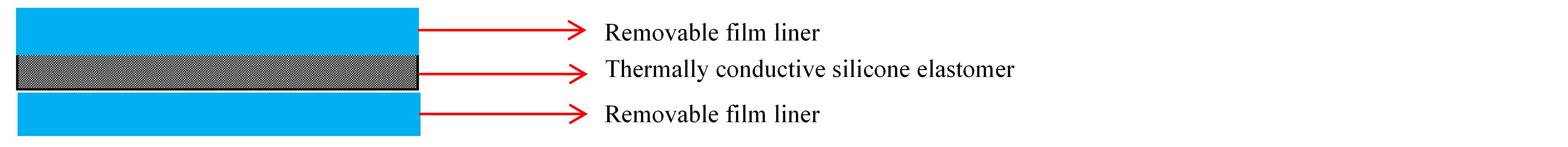

Product Construction

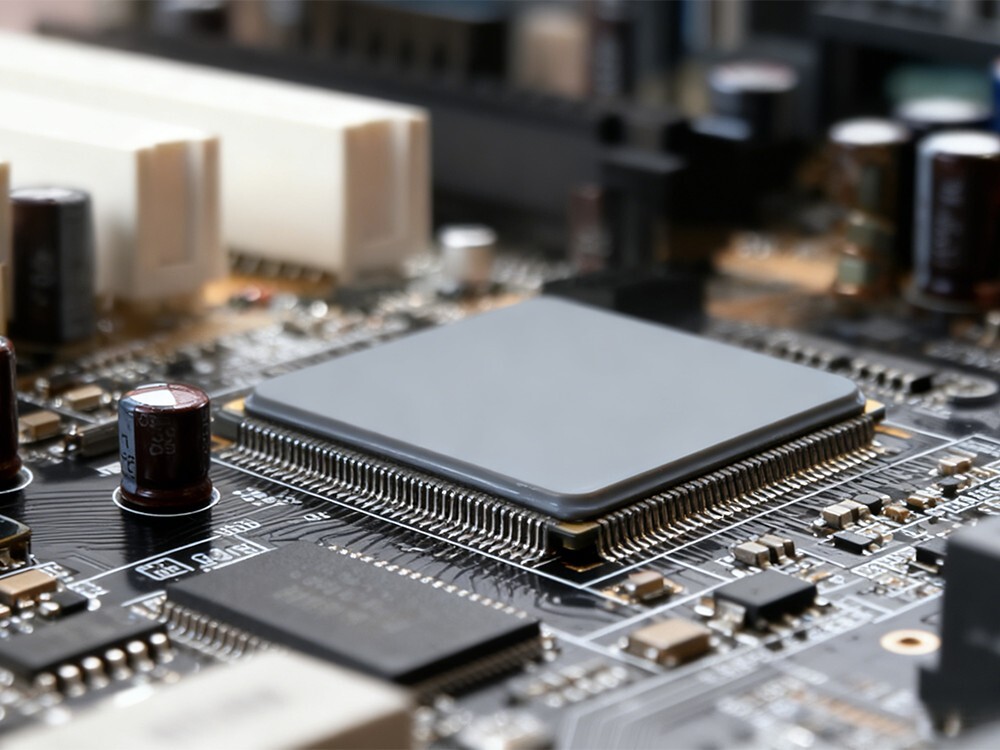

Typical Applications :

Power switch module
Automotive control units
Universal high voltage interfaces
Engine control units
Power Conversion Devices
Power Semiconductors - MOSFETs and IGBTs

	TG20-xx	TG30-xx	TG40-xx	TG50-xx	TG60-xx	TG80-xx	TG90-xx	TG100-xx	TG120-xx	TG150-xx	Test method
Thickness（mm）	0.2∽10	0.2∽10	0.2∽10	0.2∽10	0.5∽10	0.5∽10	0.5∽10	0.5∽10	0.5∽10	0.5∽10	---
Color	Blue	Brown	Green	Grey	Pink	Yellow	Grey	Grey	Grey	Grey	---
Thermal Conductivity (W/M.K)	2.0	3.0	4.0	5.0	6.0	8.0	9.0	10.0	12.0	15.0	ASTM D5470
Hardness Shore 00	25	35	40	55	55	60	60	60	70	70	---
Density (g/cm³, @ 25°C)	2.7	2.9	3.1	3.3	2.6	4.9	5.1	3.7	3.2	3.5	---
Volume resistivity (Ω-cm)	＞3.9*10¹³	＞3.1*10¹³	＞3.1*10¹³	＞3.1*10¹³	＞3.9*10¹³	＞8*10¹²	＞8*10¹²	＞8*10¹¹	＞3.1*10¹³	＞3.1*10¹³	ASTM D257-14
Breakdown Voltage kv/mm	＞8.8	＞8.8	＞8.8	＞8.9	＞11.3	＞12	＞12	＞12	＞12	＞12	ASTM D149-09
Dielectric Constant 1MHz	4.7	4.8	4.8	6.1	6.3	7.1	11.8	6.9	6.9	7.9	ASTM D150-11
Tensile Strength（psi）	48	45	45	50	50	50	55	60	60	60	ASTM D412
Coefficient of thermal expansion （ppm/°C)	63	63	63	48	48	43	43	43	42	47	IPC-TM-6502.4.24
Outgassing（TML)	0.1%	0.11%	0.11%	0.06%	0.06%	0.06%	0.1%	0.1%	0.1%	0.1%	ASTM E595-07
Exasperation(CVCM)	0.025%	0.025%	0.025%	0.025%	0.025%	0.025%	0.03%	0.03%	0.03%	0.03%	ASTM E595-07
Flame retardant UL94	V0										Equivalent UL
Working Temperature (°C)	-50°C~200°C										---
