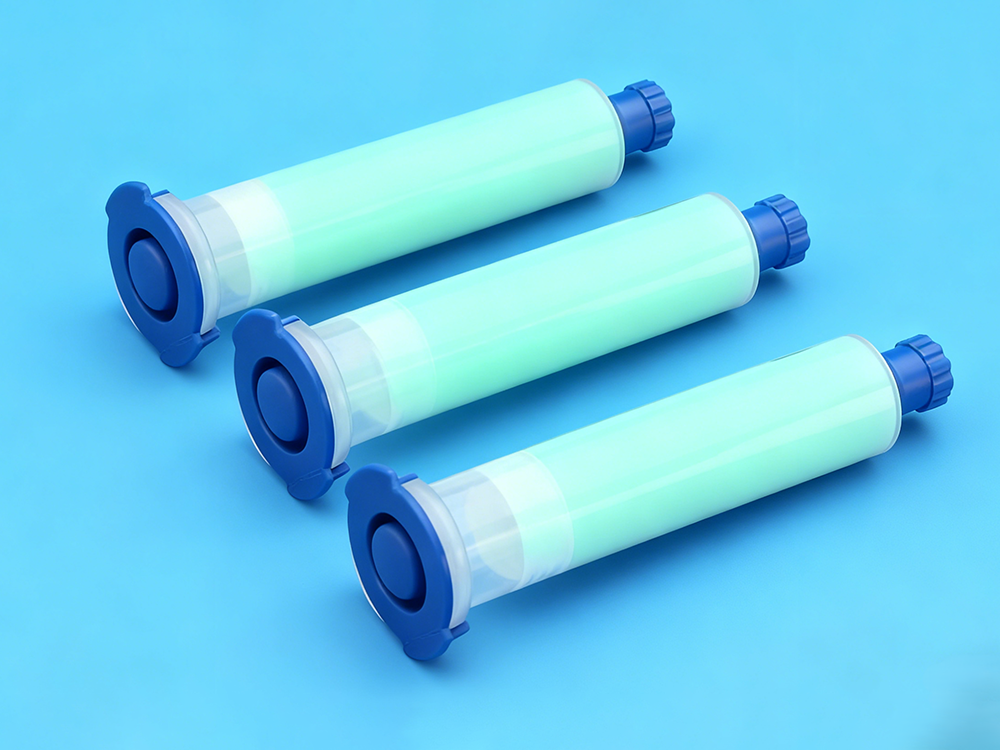

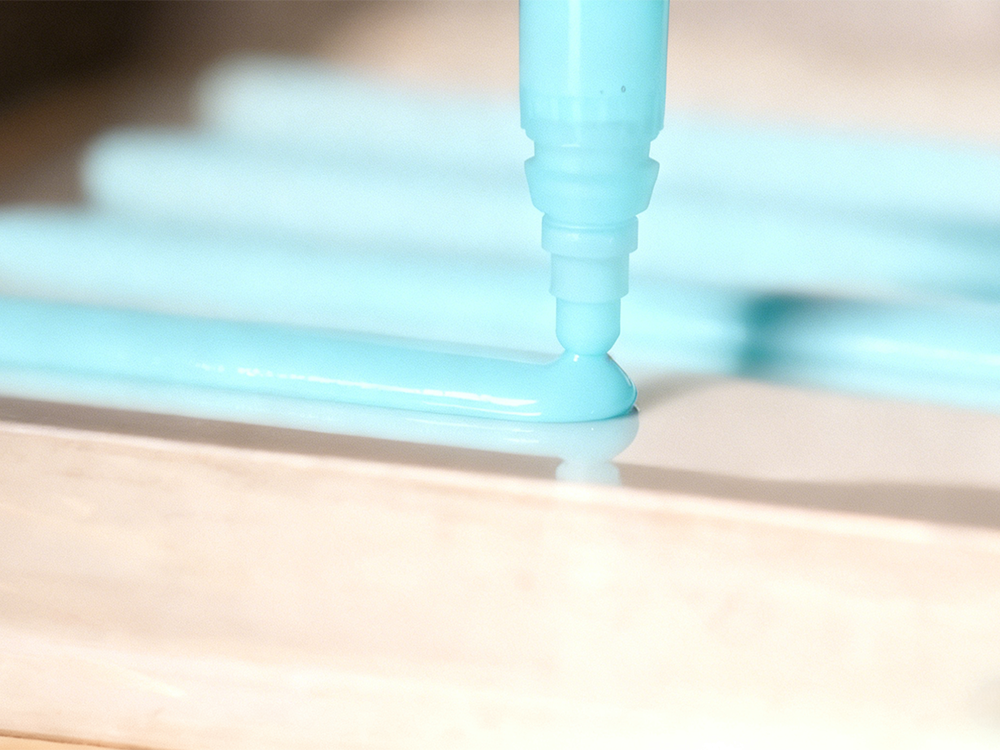

One part silicon gap filler
TGF series is a thermally conductive Gap Filler. With special formula, it has low volatility characteristics and anti-cracking, anti-drape characteristics, especially for the many electronics applications. It is ultra-soft and has good tack which is easy to rework and easy for assembly.
Email：kumazawa@minoru-japan.co.jp
Email：kaneda@Minoru-japan.co.jp
Inquiry Now →

Product Details

Product Description

TGF series is a thermally conductive Gap Filler. With special formula, it has low volatility characteristics and anti-cracking, anti-drape characteristics, especially for the many electronics applications. It is ultra-soft and has good tack which is easy to rework and easy for assembly.


Characteristics:

  • One-component material, no post-curing, suitable for automated operation

  • High reliability and thermal stability

  • Low oil penetration properties, no pump-out

  • Soft, low assembly pressure and low residual stresses


Application Fields:

  • Automotive Electronics

  • Power switches

  • Motor Control

  • Power Semiconductors

  • Power Modules

  • Mass Storage Data Centre

  • Memory modules

  • Smart terminals, mobile phones, tablet PCs

One part silicon gap filler

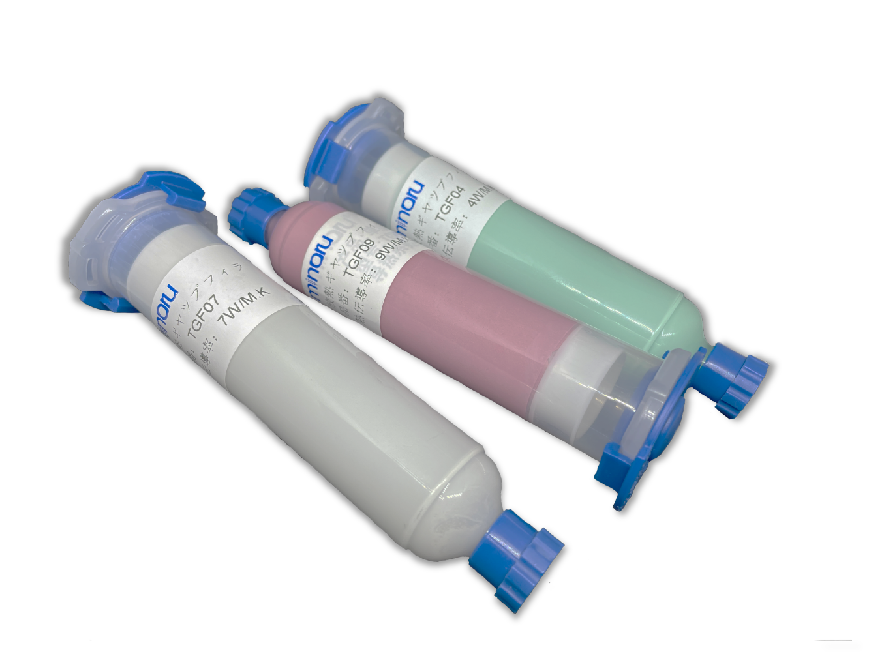

One Part Thermal Gap Filler TGFxx Series

Property

TGF03

TGF05

TGF07

TGF09

TGF10

TGF12

Test method

Construction

Ceramic filled silicone

Ceramic filled silicone

Ceramic filled silicone

Ceramic filled silicone

Ceramic filled silicone

Ceramic filled silicone

−

Color

Pink

Green

Grey

Red

Grey

Green

--

Minimum Bond Line Thickness (mm)

0.04

0.05

0.1

0.12

0.2

0.2

−

Density (g/cc)

3. 02

3.19

3. 21

3. 23

3. 71

4.1

ASTM D792

Heat capacity(J/g·K)

1.1

1.2

1.2

1.23

1.29

1.32

ASTM E1269

Flow Rate (g/min)

19

19

12

10

10

10


Outgassing (%)

<0. 01

<0. 01

<0. 01

<0. 01

<0. 01

<0. 01

ASTM E595

Operating Temperature Range (°C)

-50°C∽200°C

-50°C∽200°C

-50°C∽200°C

-50°C∽200°C

-50°C∽200°C

-50°C∽200°C

−

Dielectric Strength (Kv/mm)

>9.0

>9.0

>9.0

>9.0

>9.0

>9.0

ASTM D149

Dielectric Constant (1GHz)

6.8

7.1

7.3

9.1

8.8

9.7

ASTM D150

Flame Rating

V-0

V-0

V-0

V-0

V-0

V-0

UL 94

Thermal Conductivity ( W/m-K)

3.0

5.0

7.0

9

10

12

ASTM D5470

volume resistance ohm-cm

＞1013＞1013＞1013＞1013＞1013＞1013

ASTM D257
