Conductive fabric tape

Minoru® conductive fabric tape provides improved electrical performance on small size contacts compared to other conventional double sided foil tapes and handling characteristics.

Email：kumazawa@minoru-japan.co.jp

Email：kaneda@Minoru-japan.co.jp

Inquiry Now →

Product Details

Product Description

Minoru® conductive fabric tape provides improved electrical performance on small size contacts compared to other conventional double sided foil tapes and handling characteristics.

1.Single- sided Fabric Tape

Product Construction

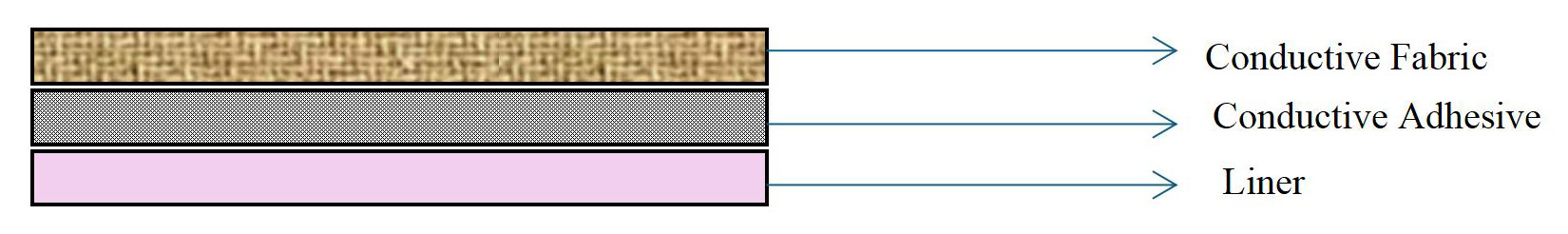

Electrically Conductive Single- sided Fabric Tape 330xxF

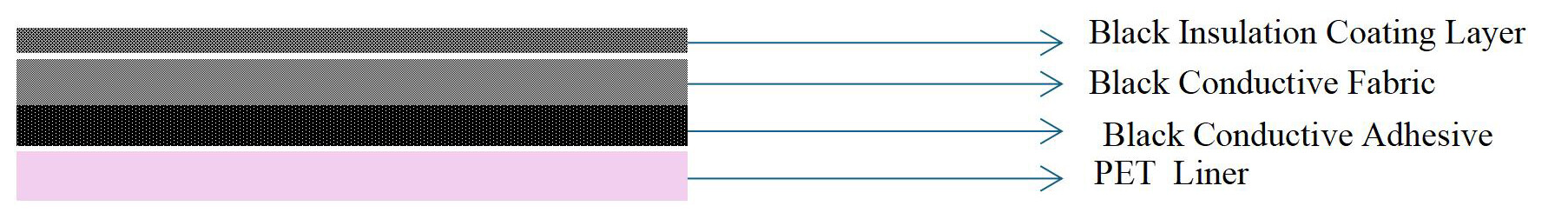

Matte Black Electrically Conductive Single- sided Fabric Tape 330xxBF

Product No.	33030F	33050F	33080F	33100F	33150F	33200F	33250F	33050BF	33070BF	Test method
Color	Gray							Black		--
Tape type	Conductive Adhesive							Black Conductive Adhesive		--
Total thickness	30um (28-38)	50um±10%	80um±10%	100um±10%	150um±10%	200um±10%	250um±10%	50um±10%	70um±10%	--
180°(Dwell 20min@RT) gf/inch	1300	1550	1750	1800	2300	2500	2900	1100	1300	ASTM D3330
Surface resistance of adhesive (Ω/口)	≤0.05	≤0.05	≤0.05	≤0.05	≤0.05	≤0.05	≤0.05	≤0.05	≤0.05	MIL 83528
Operating temperature range	-40°C～120°C									--

2.Double- sided Fabric Tape

Product Construction

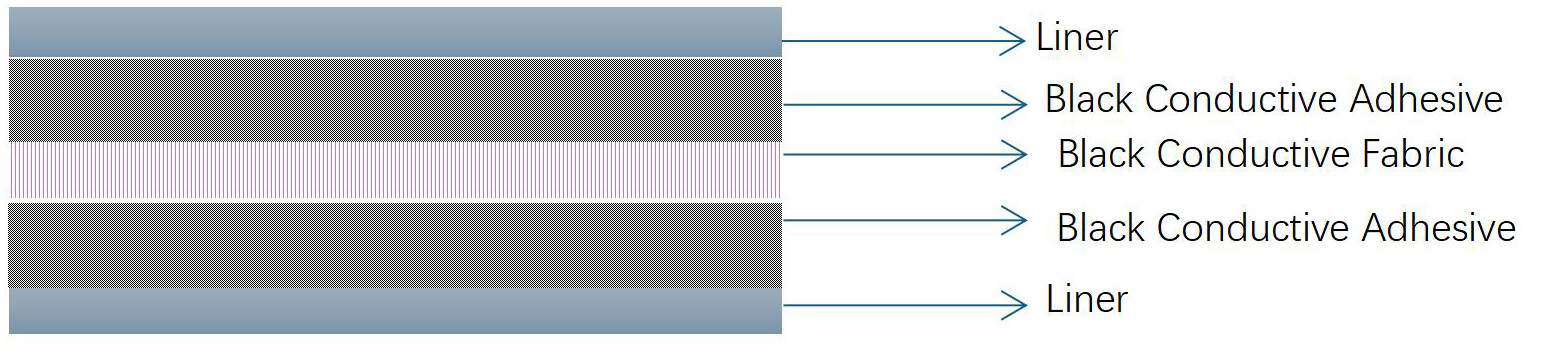

Black Electrically Conductive Double- sided Fabric Tape 320xxBF Series

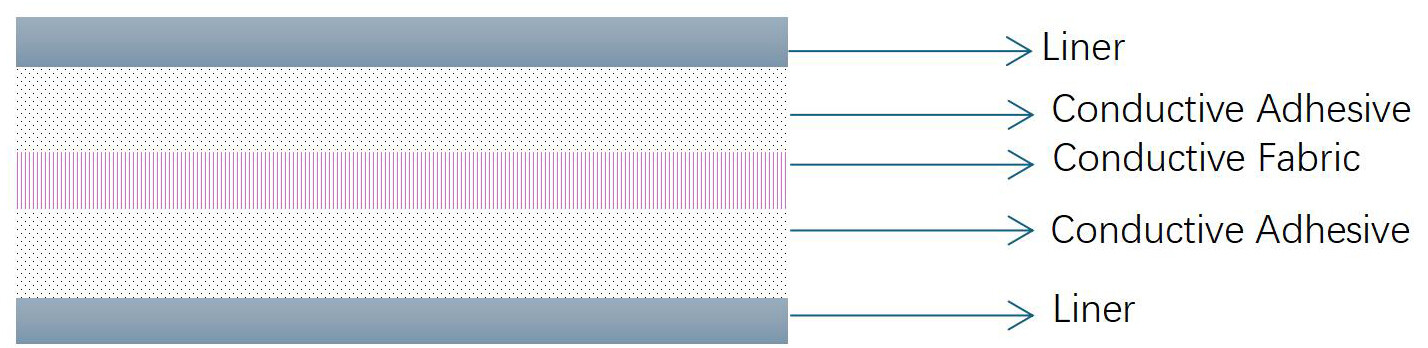

Electrically Conductive Double- sided Fabric Tape 320xxF Series

Property

32030F

32050F

32100F

32150F

32200F

32250F

32300F

32400F

32030BF

32050BF

32080BF

32100BF

32150BF

32200BF

32250BF

32300BF

Test method

Thickness

30um

(28-38)

50±10%

100±10%

150±10%

200±10%

250±10%

300±10%

400±10%

30um

(28-38)

50±10%

80±10%

100±10%

150±10%

200±10%

250±10%

300±10%

Color

Grey

Black

180peel adhesion

（dwell 20min@RT) gf/inch

1200

1600

2200

2300

2400

3000

3300

1100

1500

1600

1800

1900

2000

2100

2300

ASTM D3330

Surface resistance of adhesive (Ω/口)

≤0.01

≤0.1

≤0.2

MIL 83528

Contact resistance through adhesive (Ω/inch²)

≤0.05

≤0.012

≤0.015

≤0.03

-MIL 83528

Operating temperature range

Long-term 85°C Short-term 125°C
