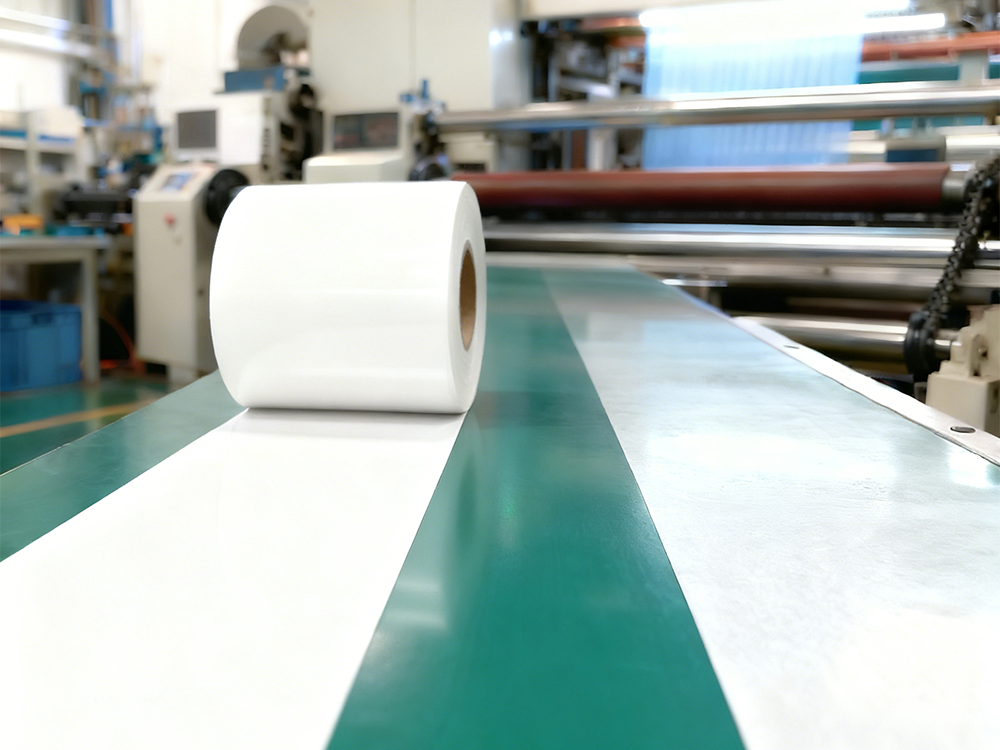

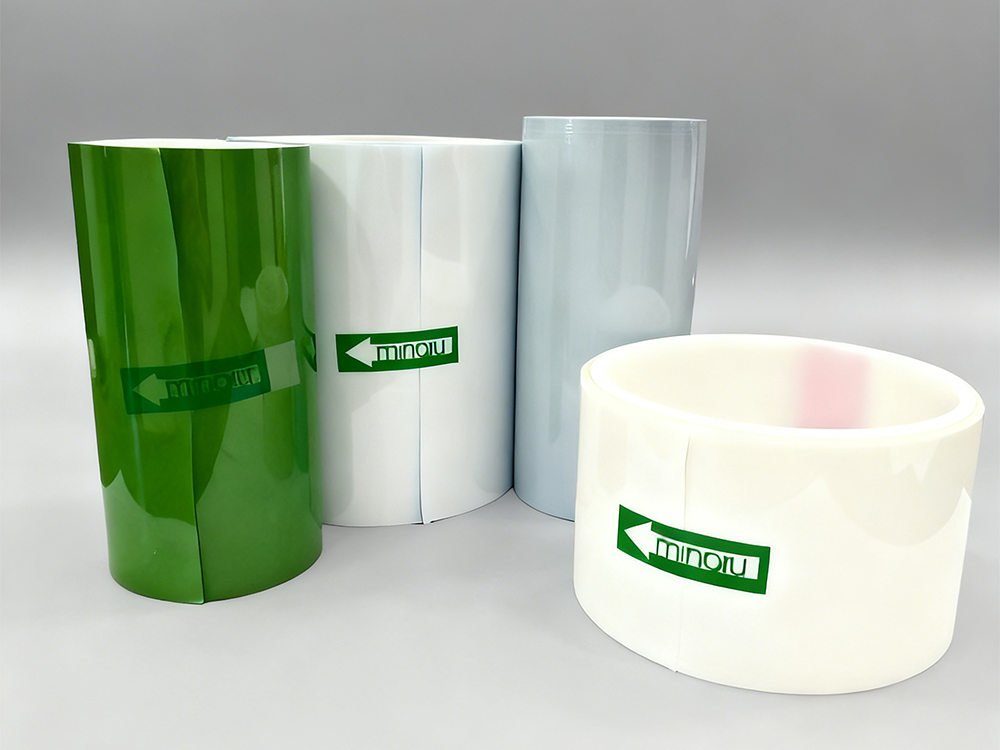

Product Description
MINORU thermal conductive tape are designed to have good converting ability, handling and re-workability through the introduction of a ultra thin PET carrier.Thermally Conductive Double-Sided Tape are designed with a soft acrylic polymer to allow excellent wet-out or conformability to many surfaces. The tapes have good adhesion performance to many substrate types and have excellent dielectric performance.
Feature
Superior thermal conductive property.
Excellent adhesion and superior adhesive reliability.
Excellent re- workability and shock absorption

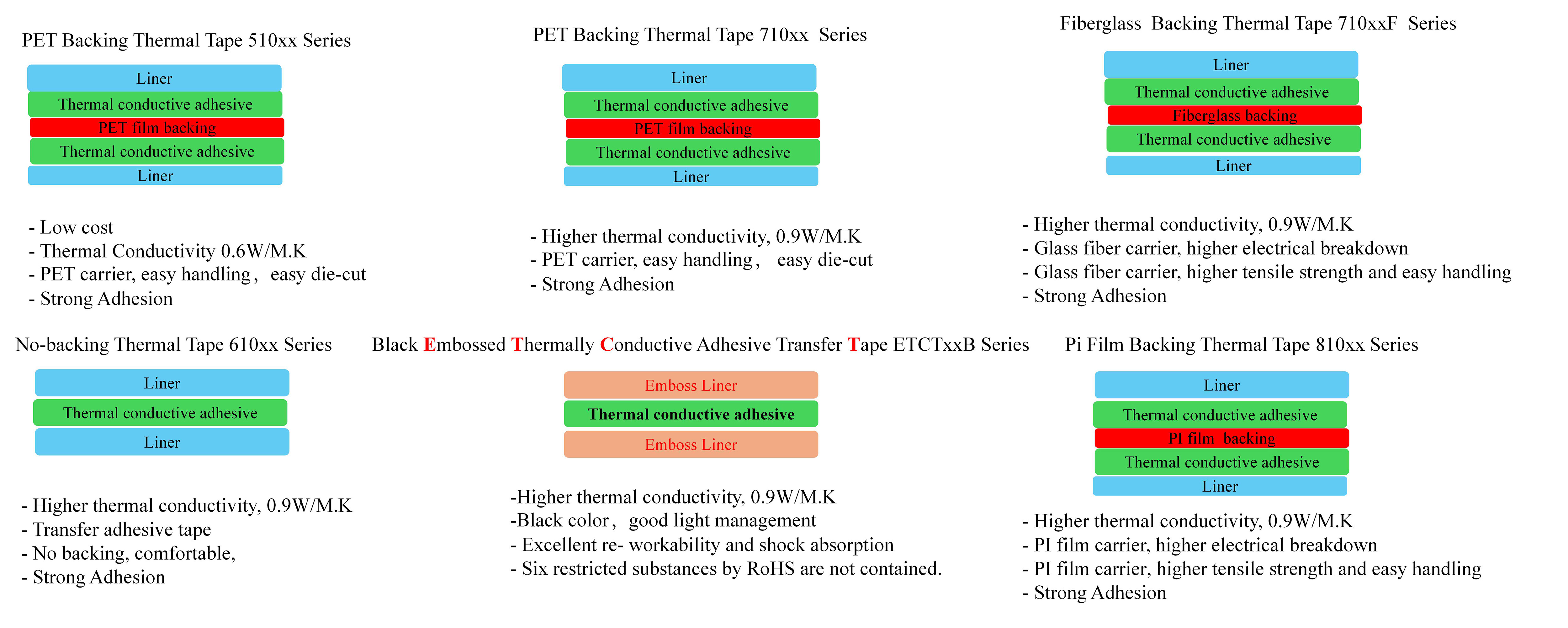

Product Construction
Thermal Conductive Double Coated Tape
PET Backing Thermal Tape 510xx Series
Product Number | 51003 | 51005 | 51010 | 51015 | 51020 | 51030 | Test method |
Thickness | 30um±10% | 50um±10% | 100um±10% | 150um±10% | 200um±10% | 300um±10% | --- |
Thermal Conductivity | 0.6w/m.k | 0.6w/m.k | 0.6w/m.k | 0.6w/m.k | 0.6w/m.k | 0.6w/m.k | ASTM D5470 |
Adhesion gf/in | 900 | 1300 | 1900 | 2100 | 2400 | 2700 | ASTM D3330 |
No-backing Thermal Tape 610xx Series
Product Number | 61003 | 61005 | 61010 | 61015 | 61020 | 61030 | Test method |
Thickness | 30um±10% | 50um±10% | 100um±10% | 150um±10% | 200um±10% | 300um±10% | --- |
Thermal Conductivity | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | ASTM D5470 |
Adhesion gf/in | 800 | 1200 | 1800 | 2000 | 2200 | 2600 | ASTM D3330 |
Black Embossed Thermally Conductive Adhesive Transfer Tape ETCTxxB Series
Product Number | ETCT03B | ETCT05B | ETCT10B | ETCT15B | ETCT20B | ETCT30B | Test method |
Thickness | 30um±10% | 50um±10% | 100um±10% | 150um±10% | 200um±10% | 300um±10% | --- |
Thermal Conductivity | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | ASTM D5470 |
Adhesion gf/in | 700 | 800 | 1000 | 1200 | 1500 | 1900 | ASTM D3330 |
PET Backing Thermal Tape 710xx Series
Product Number | 71003 | 71005 | 71010 | 71015 | 71020 | 71030 | Test method |
Thickness | 30um±10% | 50um±10% | 100um±10% | 150um±10% | 200um±10% | 300um±10% | --- |
Thermal Conductivity | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | ASTM D5470 |
Adhesion gf/in | 800 | 1200 | 1800 | 2000 | 2200 | 2600 | ASTM D3330 |
Fiberglass Backing Thermal Tape 710xxF Series
Product Number | 71005F | 71010F | 71015F | 71020F | 71025F | 71030F | 71050F | Test method |
Thickness | 50um±10% | 100um±10% | 150um±10% | 200um±10% | 250um±10% | 300um±10% | 500um±10% | --- |
Thermal Conductivity | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | ASTM D5470 |
Adhesion gf/in | 1200 | 1500 | 1700 | 1800 | 2000 | 2100 | 2400 | ASTM D3330 |
Pi Film Backing Thermal Tape 810xx Series
Product Number | 81010 | 81015 | 81020 | 81025 | Test method |
Thickness | 100um±10% | 150um±10% | 200um±10% | 250um±10% | --- |
Thermal Conductivity | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | 0.9w/m.k | ASTM D5470 |
Adhesion gf/in | 1800 | 2000 | 2200 | 2600 | ASTM D3330 |
